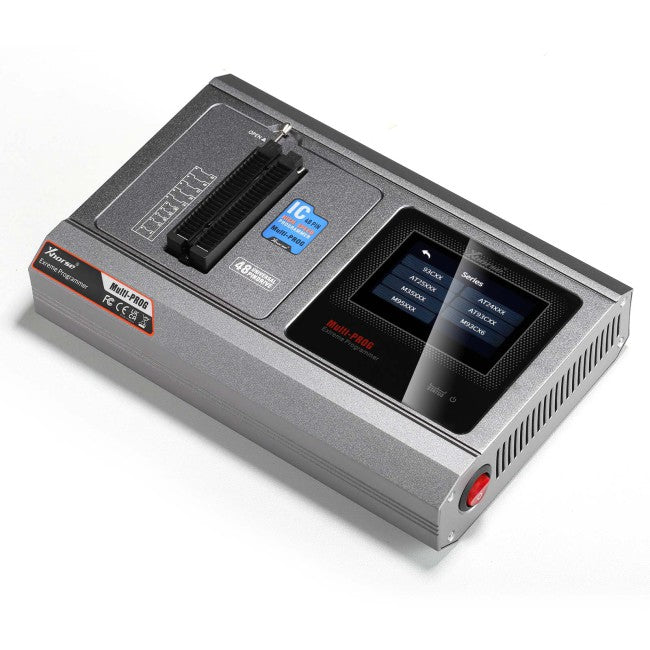

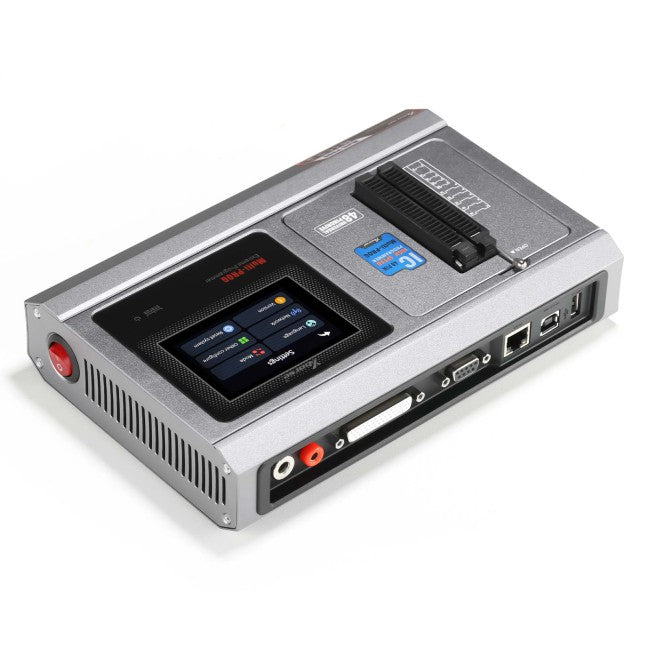

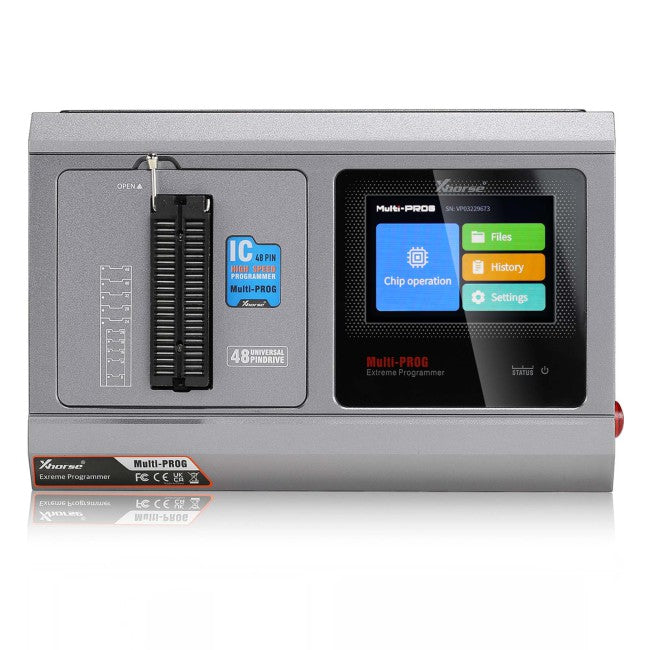

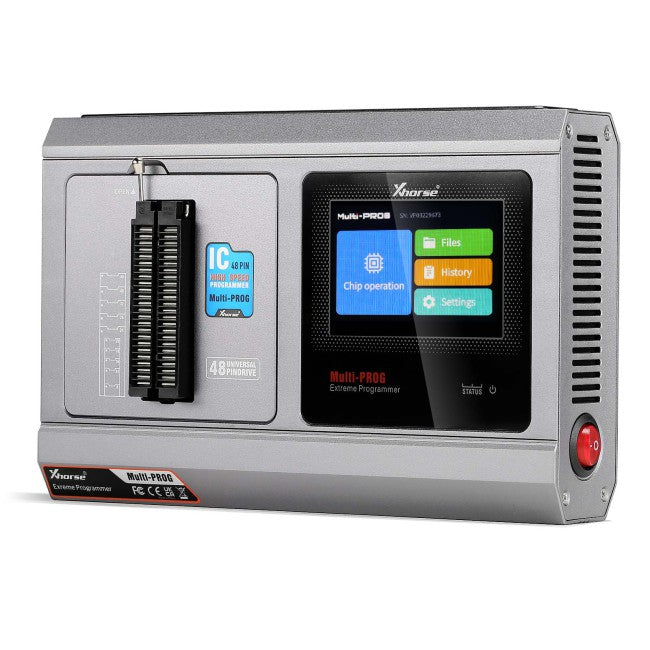

Xhorse Multi-Prog ECU Programmer Multi prog Global Version Support ECU TCU Models Free MQB48 Authorization

Xhorse Multi Prog Features:

• Upgraded version of VVDI Prog, can replace VVDI Prog totally
• Global Version, no need to worry about the upgrade issue
• Comes with MQB48 NEC35XX authorization, bind with the VVDI2 Full version, get the authorization for free
• Support Flexible Extension of Third-party Plug-ins
• Life-time free update, make VVDIProg firmware update timely
• 100% original Global English version, not cheap chinese version!

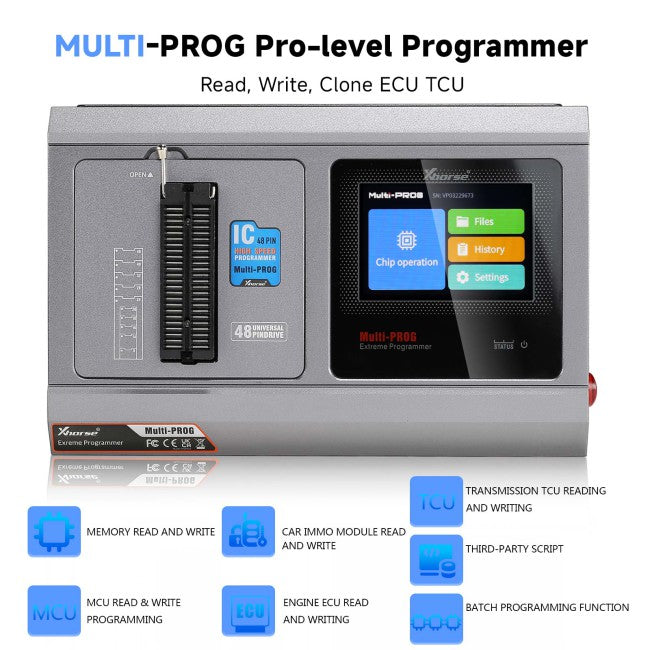

Multi-PROG Pro-level programmer supports batch writing of chips, and batch writing of chips is often used in factories when production requires large-scale writing of chips. The types of writes supported are common memory series and common microcontroller series. For the specific usage of batch writing, please refer to the documentation of the factory usage mode that comes with the software.

*Batch programming function: Multi-PROG devices support factory usage mode for batch programming of chips. In this mode, the functions of batch programming, offline programming, and file offline programming can be realized. The main difference between Xhorse VVDI PROG programmer and Xhorse MULTI-PROG Pro-level programmer is that the MULTI-PROG Pro-level programmer has the batch programming function but the VVDI PROG programmer does not.


Xhorse Multi Prog Functions:

Read, Write and Clone ECU
BMW B48/B58 reading ISN
BMW MSD80/81 /85/87/MSV90
Mercedes-Benz SIM271
BMW MSV80
VW BOSCH MED17 Series ECU
BMW N13/N20/N55/B38/TC17X
Support Marelli, Siemens, Delphi and other ECU manufacturers

Read, Write and Clone TCU
Volkswagen Audi Skoda DQ200, DQ250, VL381 TCU etc.
Porsche DL501 TCU
Ford Dodge and other MPS6 series TCU
BMW DKG, Mercedes-Benz VCS and other models TCU

Vehicle Engine Data Calculation and Processing
MEDl 7/EDC17 data processing

Support Flexible Extension of Third-party Plug-ins
Support the development of third-party plug-ins and provide data processing and modification services

Read & Write MCU

Support reading and writing MCU of various brands including Renesas, Motolora, NXP, Infineon, etc.
Support certain encrypted chip reading and writing

Read & Write Vehicle Immo Module
Support Porsche, Land Rover, Mercedes-Benz EZS, VOLVO,
VW MQB dashboard, AUDI BCM2, etc.
Support modules including BMW EWS, CAS1 \CAS2\CAS3\CAS4+, FEM BDC, etc.
Support other common immo modules
Note:Compatible with Xhorse solder-free adapters and cables

Read & Write EEPROM
Support EEPROM and FLASH

Read & Write Vehicle Dashboard
Support dashboard of VW, Honda, Hyundai, Kia, etc.

Product Specifications:

Operating system: Linux
Processor: ZYNQ7020 Dual-core Cortex A9 +FPGA
Memory: 256M* 2 DDR+64M NOR FLASH
Display: 3.5-inch
Input voltage: 15V/4A
Working current: 300mA(14V)
Working temperatures: -20-50℃
Storage temperatures: -30-65℃

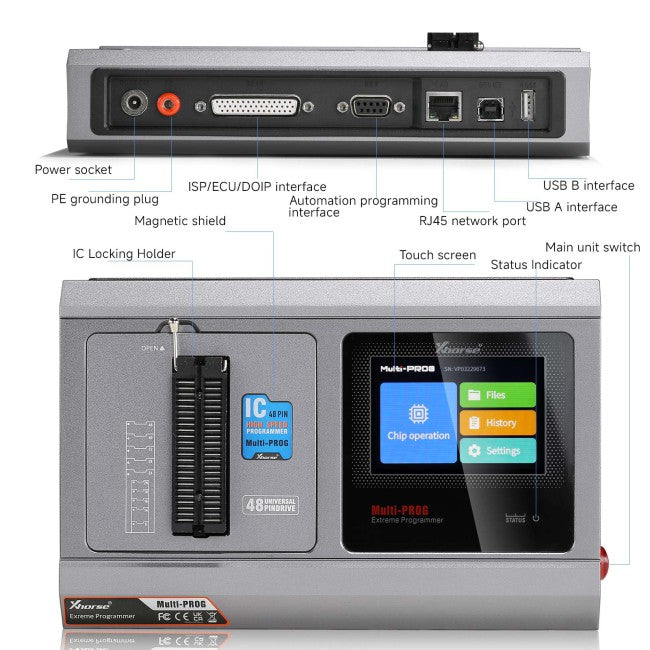

External interface: USB/RJ45
Dimensions: 233*150*54mm

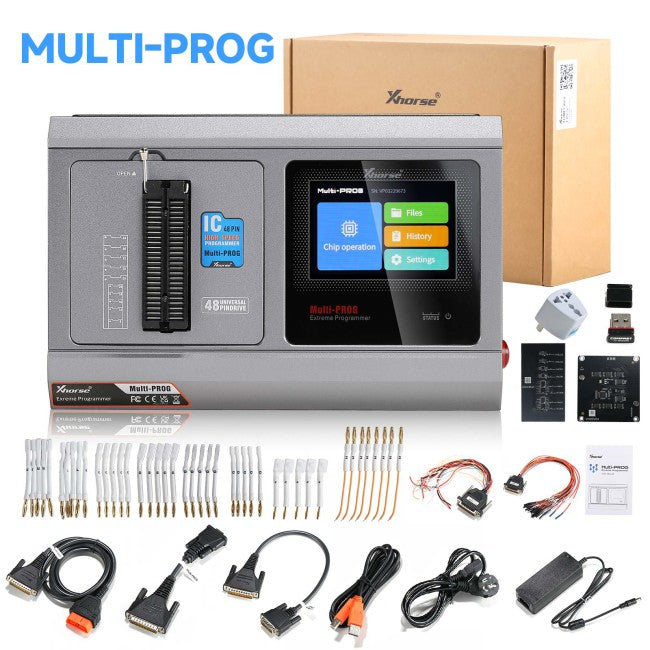

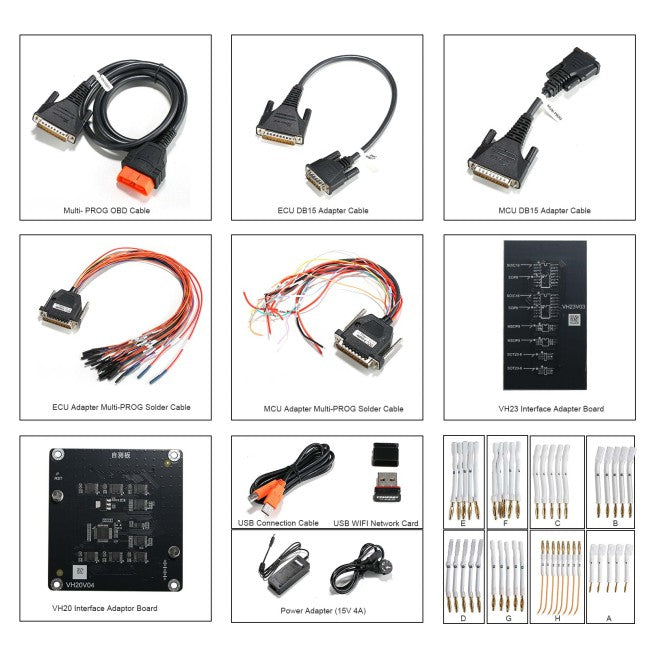

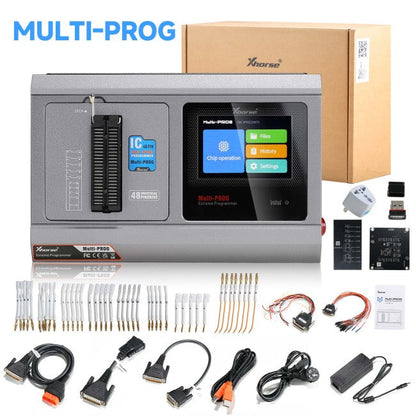

Packing List

1pc x Multi-PROG
1pc x USB Cable
1pc x Power Adapter (15V 4A)
1pc x 220V Power Cord
1pc x VH13 Interface Adapter Board
1pc x VH20 Interface Adapter Board
1pc x VH23 Interface Adapter Board
1pc x MCU Adapter Multi-PROG Solder Cable
1pc x MCU DB15 Adapter Cable
1pc x ECU Adapter Multi-PROG Solder Cable
1pc x ECU DB15 Adapter Cable
1pc x Multi-PROG OBD Cable
1pc x USB WIFI Network Card
1pc x Product Manual
1pc x Certificate Of Conformity
43pcs x ECU Cable Plugs
