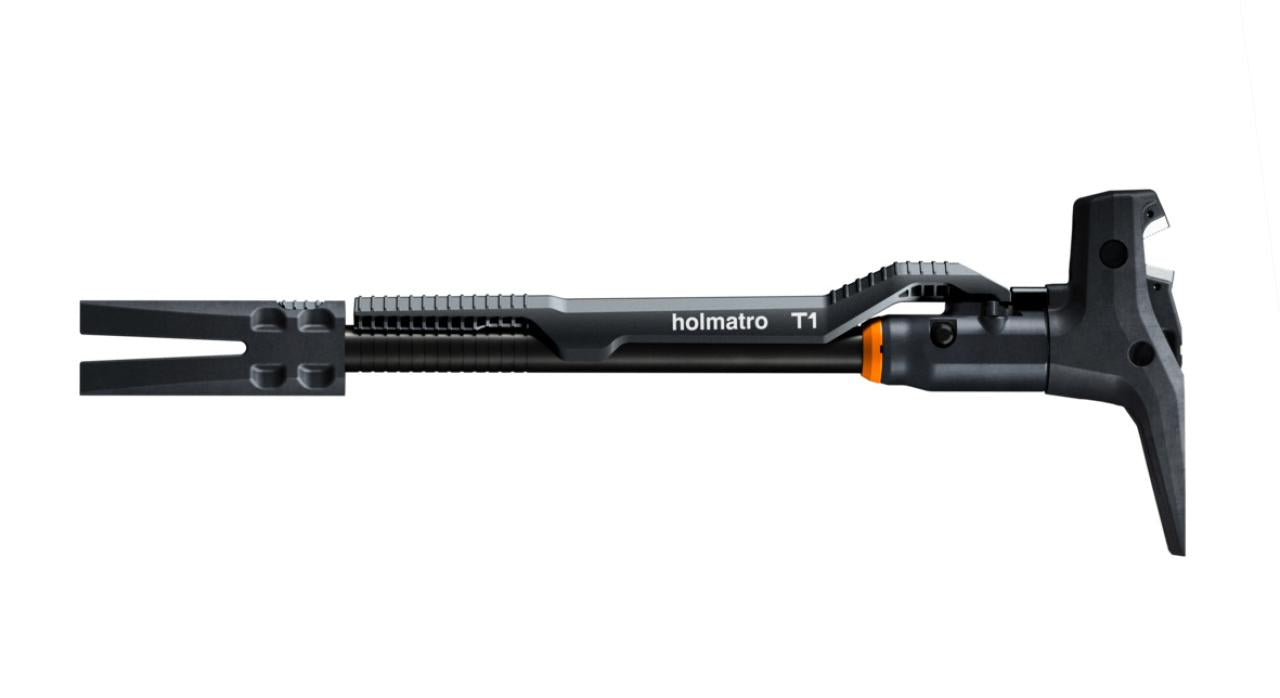

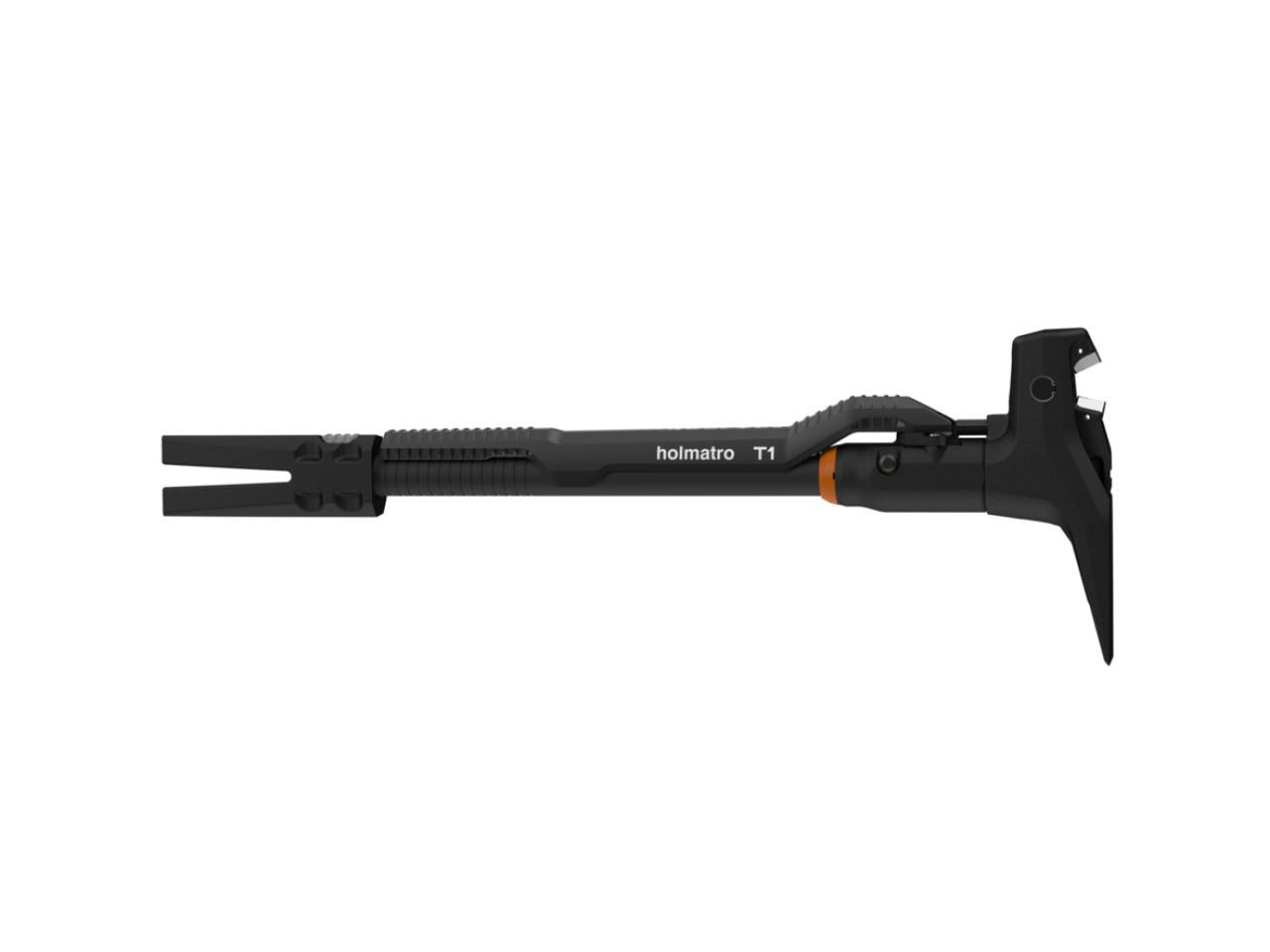

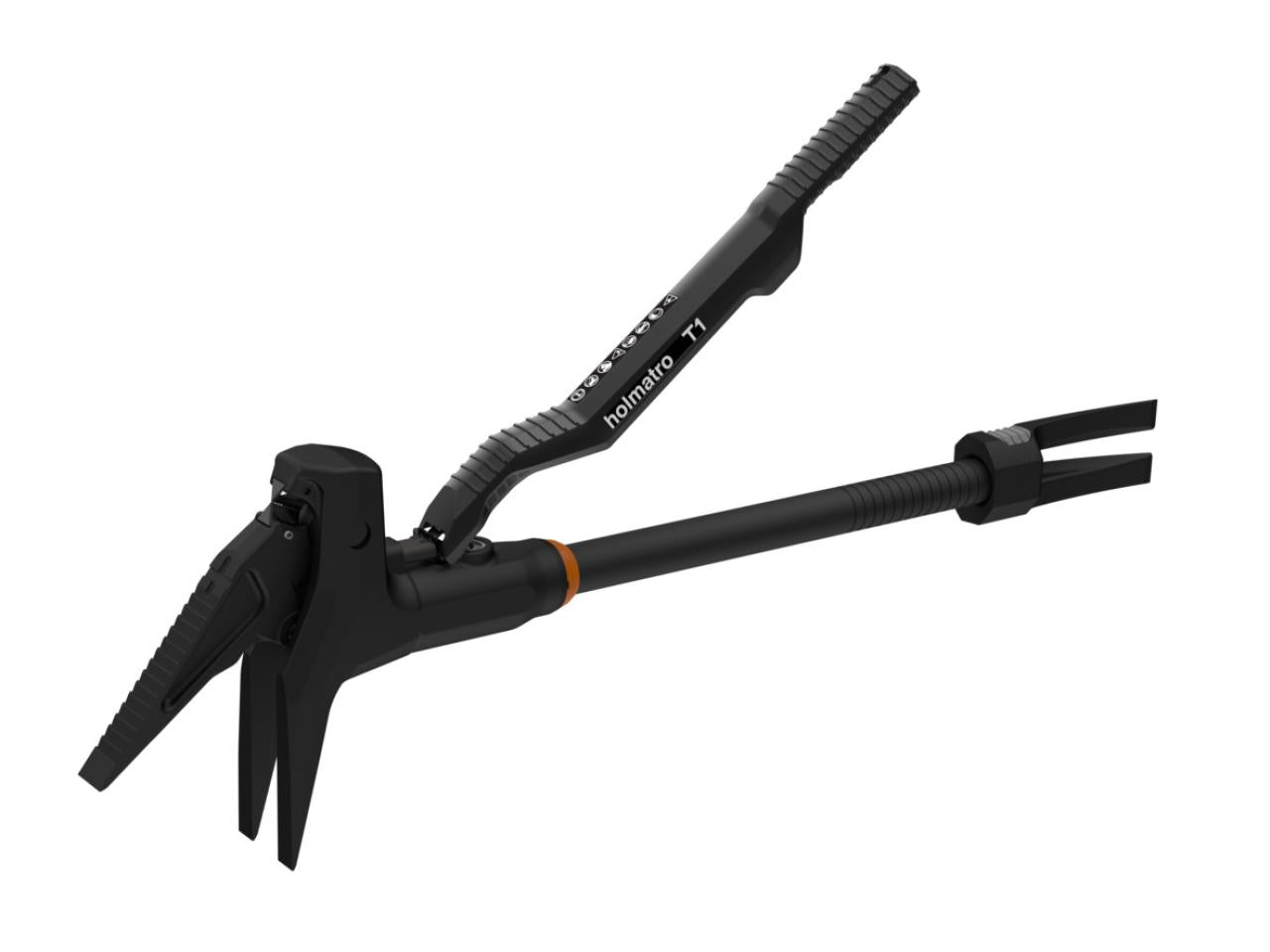

Forcible Entry Tool T1
Forcible Entry Tool T1
2-Year Warranty Included
2-Year Warranty Included
All products purchased in our store come with a standard 2-year warranty. This covers manufacturing faults and issues arising from normal use. Please retain your proof of purchase. Contact us for warranty claims or questions
Couldn't load pickup availability

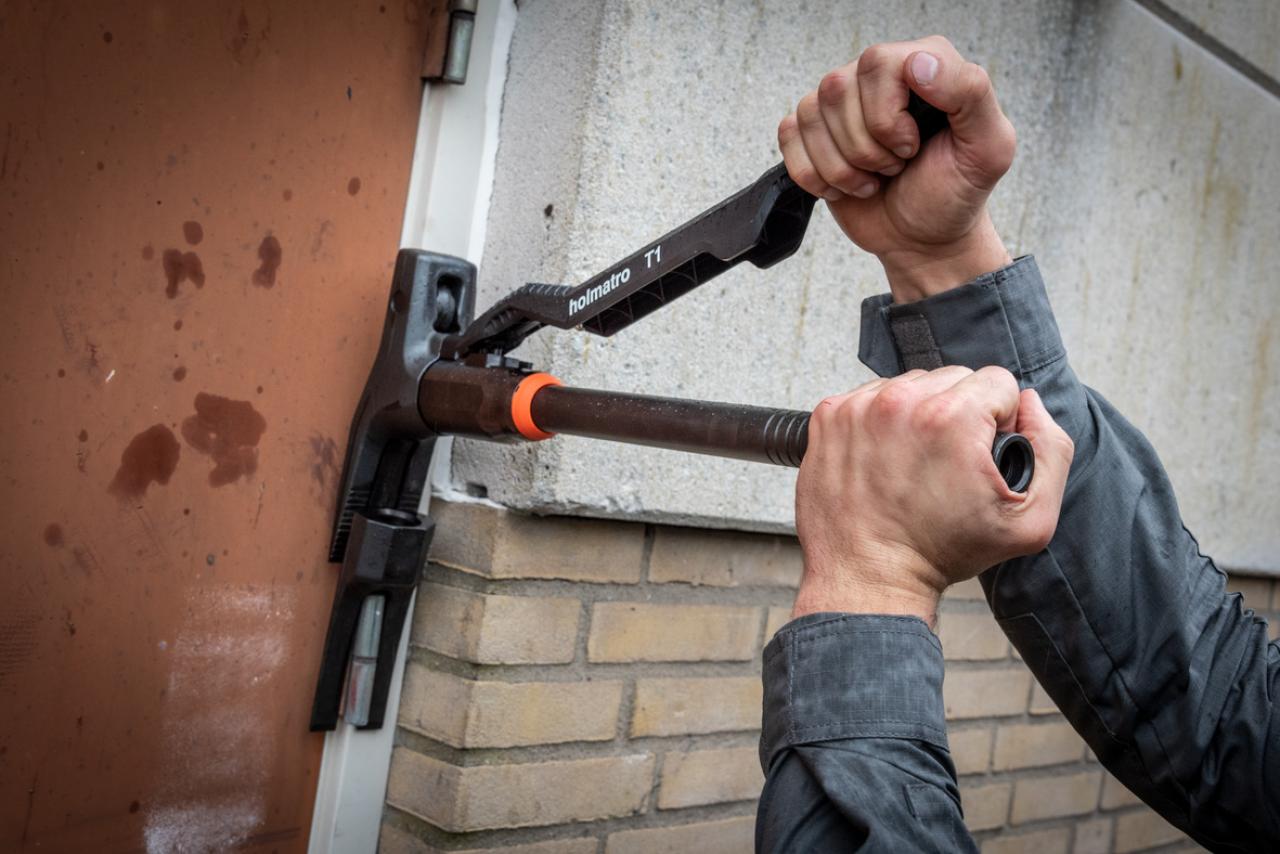

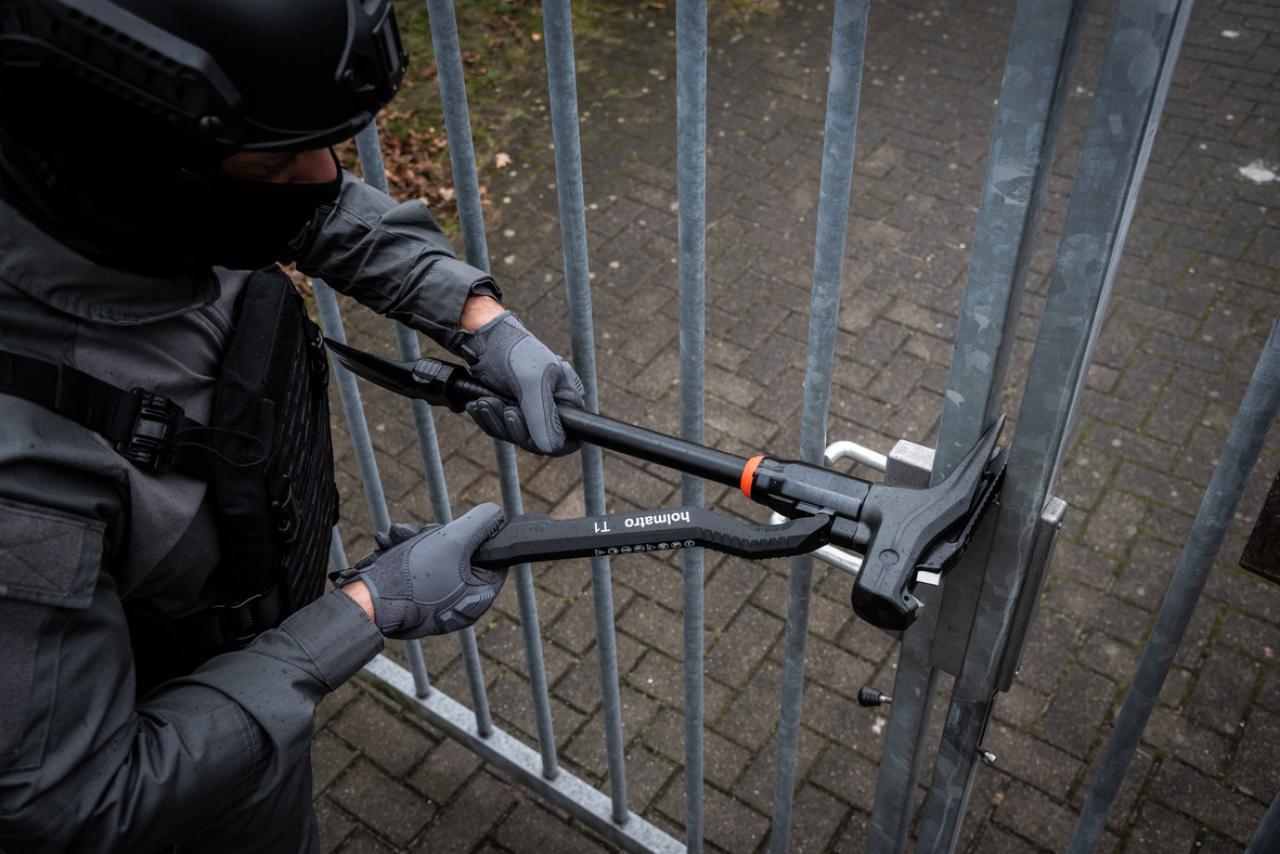

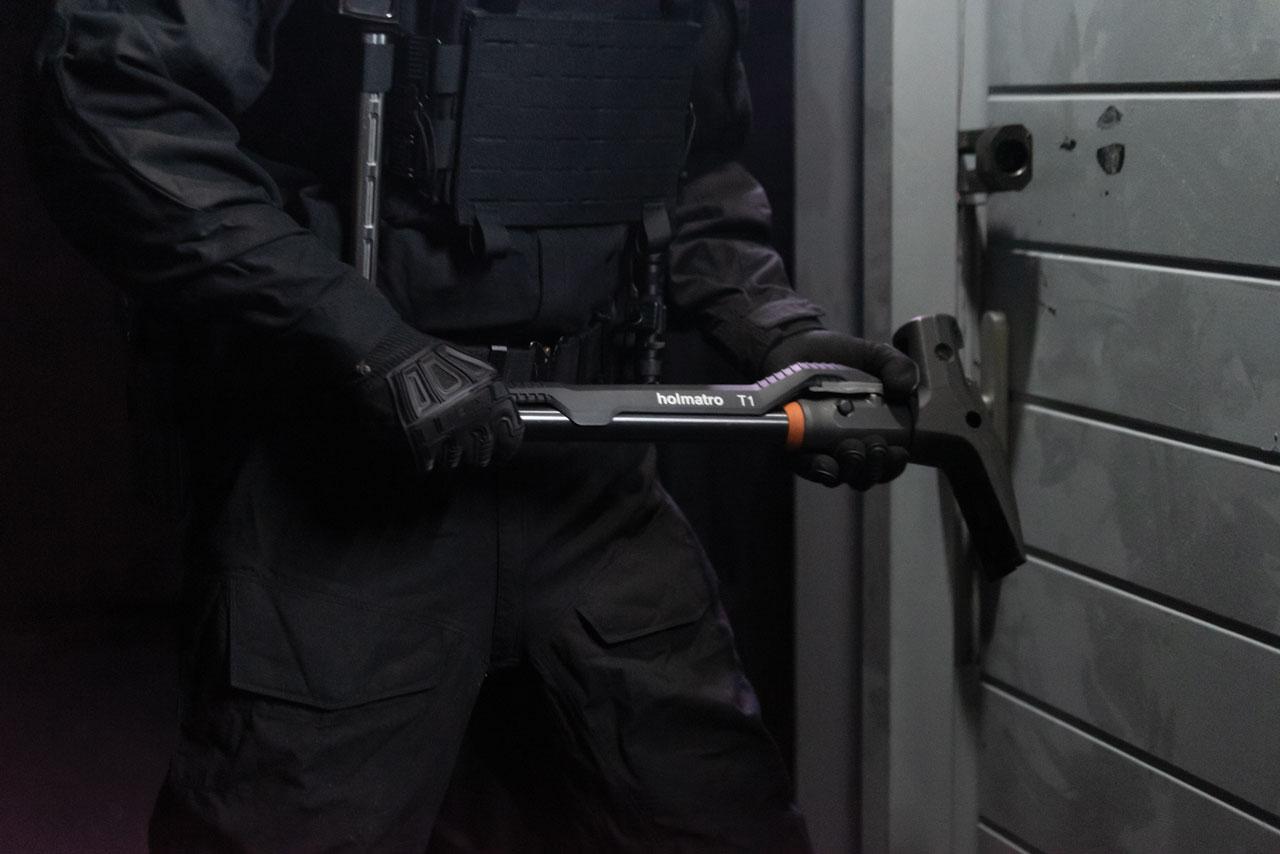

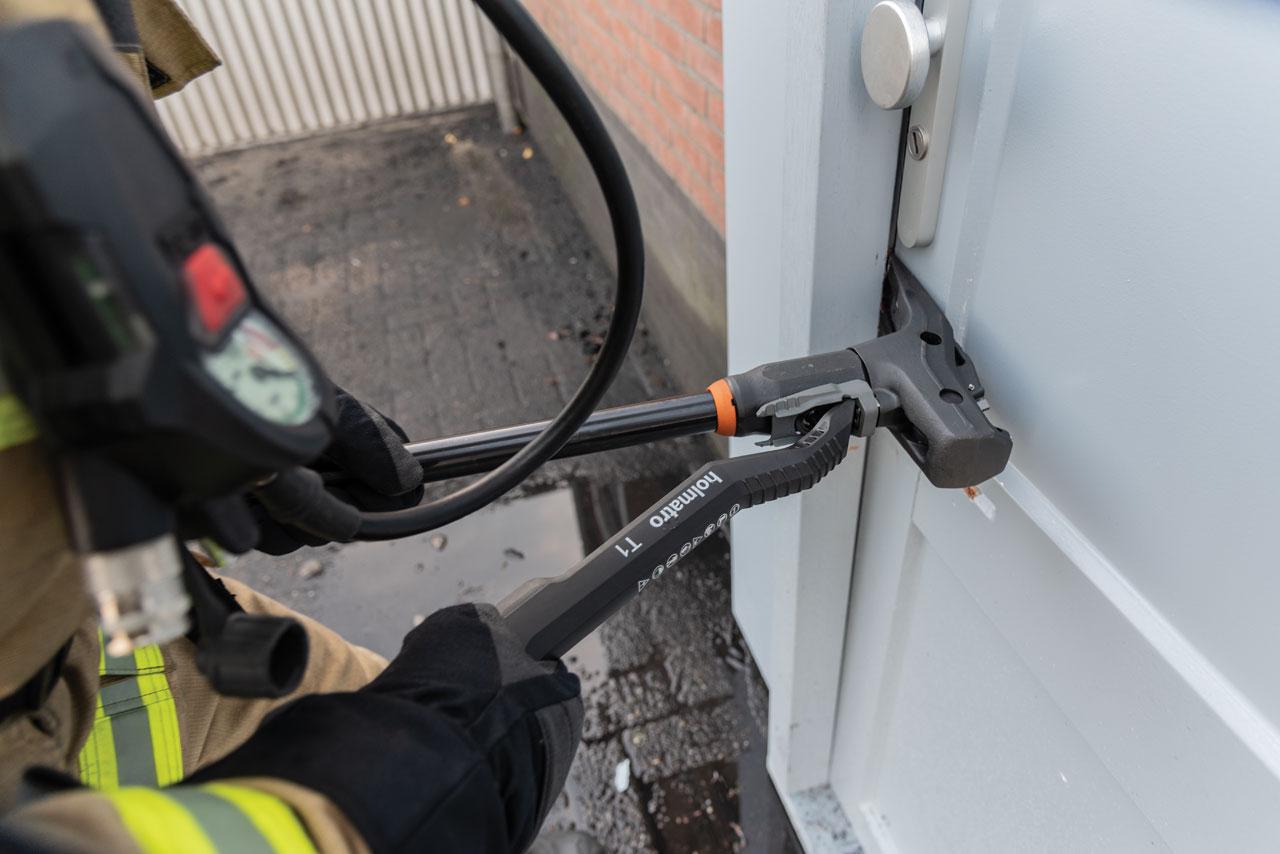

This hydraulic forcible entry tool allows you to cut, wedge, ram, spread, hammer, and lift. With the T1, you always have the right tool for the job
Multifunctional tool
The T1 can cut, wedge, ram, spread, hammer, and lift. This means you always have the right tool for the job.
Having all these functions in one tool also saves weight and space in your vehicle
The T1 is a stand-alone tool, so you won't need batteries or an external pump
Compact and powerful
The patented hydraulic cutting/spreading mechanism of the T1 allows for high cutting & spreading forces in a compact tool design
Easy to use in confined spaces
Easy to carry and store
Basic specifications | ||
model | T1 | |
max. working pressure | 720 / 72 (bar/Mpa) | 10443 psi |
Performance | ||
max. spreading force | 33 / 3.4 (kN/t) | 7419 lbf |
spreading distance | 128 mm | 5 in |
max. cutting opening | 29 mm | 1.1 in |
theoretical cutting force | 139 / 14.2 (kN/t) | 31248 lbf |
min. spreading force 25mm from tip | 5845 lbf | |
min. spreading force 25mm from tip | 26 / 2.7 (kN/t) | |
General specifications | ||
operator type | hand | |
Dimensions, weight and temperature | ||
weight, ready for use | 7.7 kg | 17 lb |

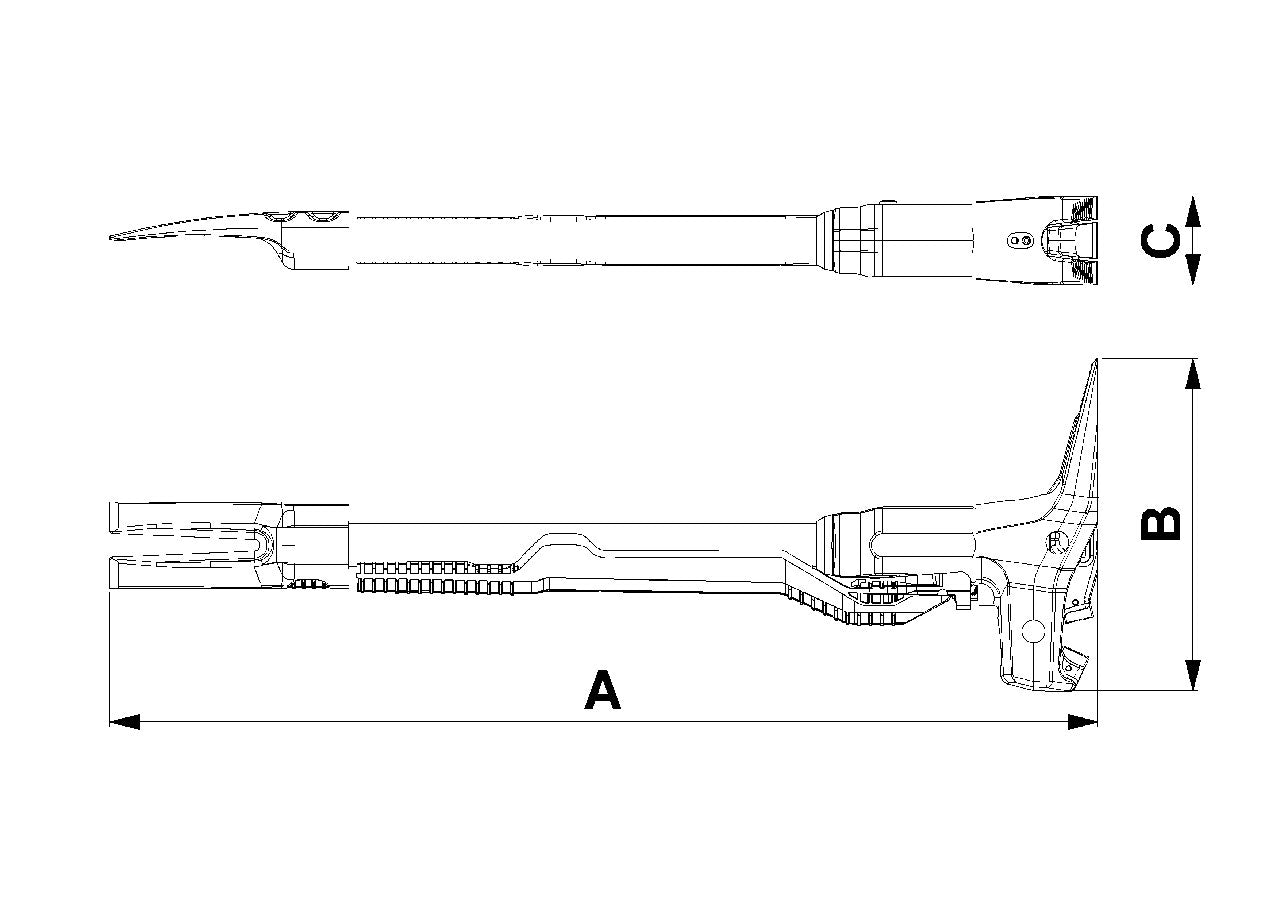

dimensions (AxBxC) | 694 x 232 x 62 mm | 27.3 x 9.1 x 2.4 in |
Cutting performance | ||
round bar (S235) | 18 mm | 0.7 in |
Standard supplied with:
- Removable cutting blades
- Detachable wedge
